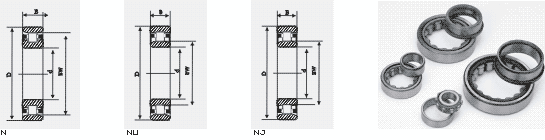

| Cylindarical Roller Bearings |
|
| |
| Cylindrical Roller Bearings |
| Bearing No. |
dxDxB(mm) |
Weight(kg) |
| N202 |
15x35x11 |
0.046 |
| N203 |
17x40x12 |
0.066 |
| N204 |
20x47x14 |
0.110 |
| N205 |
25x52x15 |
0.130 |
| N206 |
30x62x16 |
0.200 |
| N207 |
35x72x17 |
0.300 |
| N208 |
40x80x18 |
0.370 |
| N209 |
45x85x19 |
0.430 |
| N210 |
50x90x20 |
0.480 |
| N211 |
55x100x21 |
0.660 |
| N212 |
60x110x22 |
0.810 |
| N213 |
65x120x23 |
1.000 |
| N214 |
70x125x24 |
1.100 |
| N215 |
75x130x25 |
1.210 |
| N216 |
80x140x26 |
1.470 |
| N217 |
85x150x28 |
1.830 |
| N218 |
90x160x30 |
2.250 |
| N219 |
95x170x32 |
2.720 |
| N220 |
100x180x34 |
3.260 |
| N221 |
105x190x36 |
3.870 |
| N222 |
110x200x38 |
4.540 |
| |
|
|
| N304 |
20x52x15 |
0.150 |
| N305 |
25x62x17 |
0.240 |
| N306 |
30x72x19 |
0.350 |
| N307 |
35x80x21 |
0.450 |
| N308 |
40x90x23 |
0.640 |
| N309 |
45x100x25 |
0.860 |
| N310 |
50x110x27 |
1.110 |
| N311 |
55x120x29 |
1.420 |
| N312 |
60x130x31 |
1.760 |
| N313 |
65x140x33 |
2.180 |
| N314 |
70x150x35 |
2.650 |
| N315 |
75x160x37 |
3.210 |
| N316 |
80x170x39 |
3.770 |
| N317 |
85x180x41 |
4.440 |
| N318 |
90x190x43 |
5.180 |
| N319 |
95x200x45 |
5.990 |
| |
|
|
| N405 |
25x80x21 |
0.536 |
| N406 |
30x90x23 |
0.732 |
| N407 |
35x100x25 |
0.965 |
| N408 |
40x110x27 |
1.270 |
| N409 |
45x120x29 |
1.580 |
| N410 |
50x130x31 |
1.970 |
| N411 |
55x140x33 |
2.420 |
| N412 |
60x150x35 |
2.930 |
| N413 |
65x160x37 |
3.500 |
| N414 |
70x180x42 |
5.100 |
| N415 |
75x190x45 |
6.060 |
| N416 |
80x200x48 |
7.140 |
| |
|
|
| NU202 |
15x35x11 |
0.047 |
| NU203 |
17x40x12 |
0.068 |
| NU204 |
20x47x14 |
0.110 |
| NU205 |
25x52x15 |
0.130 |
| NU206 |
30x62x16 |
0.200 |
| NU207 |
35x72x17 |
0.300 |
| NU208 |
40x80x18 |
0.370 |
| NU209 |
45x85x19 |
0.430 |
| NU210 |
50x90x20 |
0.480 |
| NU211 |
55x100x21 |
0.640 |
| NU212 |
60x110x22 |
0.810 |
| NU213 |
65x120x23 |
1.020 |
| NU214 |
70x125x24 |
1.120 |
| NU215 |
75x130x25 |
1.250 |
| NU216 |
80x140x26 |
1.500 |
| NU217 |
85x150x28 |
1.900 |
| NU218 |
90x160x30 |
2.300 |
| NU219 |
95x170x32 |
2.780 |
| NU220 |
100x180x34 |
3.330 |
| NU221 |
105x190x36 |
4.000 |
| NU222 |
110x200x38 |
4.630 |
| |
|
|
| NU304 |
20x52x15 |
0.150 |
| NU305 |
25x62x17 |
0.240 |
| NU306 |
30x72x19 |
0.360 |
| NU307 |
35x80x21 |
0.480 |
| NU308 |
40x90x23 |
0.650 |
| NU309 |
45x100x25 |
0.900 |
| NU310 |
50x110x27 |
1.150 |
| NU311 |
55x120x29 |
1.450 |
| NU312 |
60x130x31 |
1.800 |
| NU313 |
65x140x33 |
2.250 |
| NU314 |
70x150x35 |
2.750 |
| NU315 |
75x160x37 |
3.300 |
| NU316 |
80x170x39 |
3.950 |
| NU317 |
85x180x41 |
4.700 |
| NU318 |
90x190x43 |
5.300 |
| NU319 |
95x200x45 |
6.130 |
| |
|
|
| NU405 |
25x80x21 |
0.550 |
| NU406 |
30x90x23 |
0.750 |
| NU407 |
35x100x25 |
1.000 |
| NU408 |
40x110x27 |
1.300 |
| NU409 |
45x120x29 |
1.620 |
| NU410 |
50x130x31 |
2.000 |
| NU411 |
55x140x33 |
2.500 |
| NU412 |
60x150x35 |
3.000 |
| NU413 |
65x160x37 |
3.600 |
| NU414 |
70x180x42 |
5.250 |
| NU415 |
75x190x45 |
6.250 |
| NU416 |
80x200x48 |
7.300 |
| |
|
|
| NJ202 |
15x35x11 |
0.049 |
| NJ203 |
17x40x12 |
0.070 |
| NJ204 |
20x47x14 |
0.110 |
| NJ205 |
25x52x15 |
0.140 |
| NJ206 |
30x62x16 |
0.210 |
| NJ207 |
35x72x17 |
0.310 |
| NJ208 |
40x80x18 |
0.380 |
| NJ209 |
45x85x19 |
0.440 |
| NJ210 |
50x90x20 |
0.490 |
| NJ211 |
55x100x21 |
0.670 |
| NJ212 |
60x110x22 |
0.830 |
| NJ213 |
65x120x23 |
1.050 |
| NJ214 |
70x125x24 |
1.150 |
| NJ215 |
75x130x25 |
1.300 |
| NJ216 |
80x140x26 |
1.550 |
| NJ217 |
85x150x28 |
1.950 |
| NJ218 |
90x160x30 |
2.400 |
| NJ219 |
95x170x32 |
2.900 |
| NJ220 |
100x180x34 |
3.500 |
| NJ221 |
105x190x36 |
4.100 |
| NJ222 |
110x200x38 |
4.900 |
| |
|
|
| NJ304 |
20x52x15 |
0.150 |
| NJ305 |
25x62x17 |
0.250 |
| NJ306 |
30x72x19 |
0.370 |
| NJ307 |
35x80x21 |
0.490 |
| NJ308 |
40x90x23 |
0.670 |
| NJ309 |
45x100x25 |
0.920 |
| NJ310 |
50x110x27 |
1.150 |
| NJ311 |
55x120x29 |
1.500 |
| NJ312 |
60x130x31 |
1.900 |
| NJ313 |
65x140x33 |
2.300 |
| NJ314 |
70x150x35 |
2.800 |
| NJ315 |
75x160x37 |
3.350 |
| NJ316 |
80x170x39 |
4.000 |
| NJ317 |
85x180x41 |
4.540 |
| NJ318 |
90x190x43 |
5.300 |
| NJ319 |
95x200x45 |
6.130 |
| |
|
|
| NJ406 |
30x90x23 |
0.770 |
| NJ407 |
35x100x25 |
1.050 |
| NJ408 |
40x110x27 |
1.300 |
| NJ409 |
45x120x29 |
1.650 |
| NJ410 |
50x130x31 |
2.050 |
| NJ411 |
55x140x33 |
2.550 |
| NJ412 |
60x150x35 |
3.100 |
| NJ413 |
65x160x37 |
3.650 |
| NJ414 |
70x180x42 |
5.350 |
| NJ415 |
75x190x45 |
6.400 |
| NJ416 |
80x200x48 |
7.450 |
|
| |
|
